Effects of Feature Standardization on Model Performance

Welcome to this tutorial on feature standardization in machine learning! In this tutorial, we'll explore how standardizing features can significantly impact the performance of different machine learning models.

We'll compare Logistic Regression and Support Vector Machine (SVM) models, both with and without feature standardization. This will help us understand when and why preprocessing is important for model performance.

This demonstration is available as a Jupyter notebook or julia script here.

using Pkg
Pkg.activate(@__DIR__);
Pkg.instantiate();

  Activating project at `~/Documents/GitHub/MLJTransforms/docs/src/tutorials/standardization`

Setup

First, let's make sure we're using a compatible Julia version. This code was tested with Julia 1.10. Let's import all the packages we'll need for this tutorial.

# Load the necessary packages
using MLJ                   # Core MLJ framework
using LIBSVM                # For Support Vector Machine
using DataFrames            # For displaying results
using RDatasets             # To load sample datasets
using Random                # For reproducibility
using ScientificTypes       # For proper data typing
using Plots                 # For visualizations

Data Preparation

Let's load the Pima Indians Diabetes Dataset. This is a classic dataset for binary classification, where we predict diabetes status based on various health metrics.

The interesting thing about this dataset is that different features have very different scales. We'll artificially exaggerate this by adding a large constant to the glucose values.

# Load the dataset and modify it to have extreme scale differences
df = RDatasets.dataset("MASS", "Pima.tr")
df.Glu .+= 10000.0;  # Artificially increase the scale of glucose values

Let's examine the first few rows of our dataset:

first(df, 5)

Data Type Conversion

In MLJ, it's important to ensure that our data has the correct scientific types. This helps the framework understand how to properly handle each column.

We'll convert our columns to their appropriate types:

• Count for discrete count data
• Continuous for continuous numerical data
• Multiclass for our target variable

# Coerce columns to the right scientific types
df = coerce(df,
    :NPreg => Continuous, # Number of pregnancies will be treated as continuous
    :Glu => Continuous,   # Glucose level is continuous
    :BP => Continuous,    # Blood pressure is continuous
    :Skin => Continuous,  # Skin thickness is continuous
    :BMI => Continuous,   # Body mass index is continuous
    :Ped => Continuous,   # Diabetes pedigree is continuous
    :Age => Continuous,   # Age is continuous
    :Type => Multiclass,  # Diabetes status is our target (Yes/No)
);

Notice we treat NPreg as continuous for broader compatibility with various MLJ models.

Let's verify that our schema looks correct:

schema(df)

┌───────┬───────────────┬─────────────────────────────────┐
│ names │ scitypes      │ types                           │
├───────┼───────────────┼─────────────────────────────────┤
│ NPreg │ Continuous    │ Float64                         │
│ Glu   │ Continuous    │ Float64                         │
│ BP    │ Continuous    │ Float64                         │
│ Skin  │ Continuous    │ Float64                         │
│ BMI   │ Continuous    │ Float64                         │
│ Ped   │ Continuous    │ Float64                         │
│ Age   │ Continuous    │ Float64                         │
│ Type  │ Multiclass{2} │ CategoricalValue{String, UInt8} │
└───────┴───────────────┴─────────────────────────────────┘

Feature Extraction and Data Splitting

Now we'll separate our features from our target variable. In MLJ, this is done with the unpack function.

# Unpack features (X) and target (y)
y, X = unpack(df, ==(:Type); rng = 123);

Next, we'll split our data into training and testing sets. We'll use 70% for training and 30% for testing.

# Split data into train and test sets
train, test = partition(eachindex(y), 0.7, shuffle = true, rng = 123);

Model Setup

We'll compare two different models:

1. Logistic Regression: A linear model good for binary classification
2. Support Vector Machine (SVM): A powerful non-linear classifier

For each model, we'll create two versions:

• One without standardization
• One with standardization

The Standardizer transformer will rescale our features to have mean 0 and standard deviation 1.

# Load our models from their respective packages
logreg = @load LogisticClassifier pkg = MLJLinearModels
svm = @load SVC pkg = LIBSVM
stand = Standardizer()  # This is our standardization transformer

# Create pipelines for each model variant
logreg_pipe = logreg()  # Plain logistic regression
logreg_std_pipe = stand |> logreg()  # Logistic regression with standardization
svm_pipe = svm()  # Plain SVM
svm_std_pipe = stand |> svm()  # SVM with standardization

DeterministicPipeline(
  standardizer = Standardizer(
        features = Symbol[],
        ignore = false,
        ordered_factor = false,
        count = false),
  svc = SVC(
        kernel = LIBSVM.Kernel.RadialBasis,
        gamma = 0.0,
        cost = 1.0,
        cachesize = 200.0,
        degree = 3,
        coef0 = 0.0,
        tolerance = 0.001,
        shrinking = true),
  cache = true)

Model Evaluation

Let's set up a vector of our models so we can evaluate them all using the same process. For each model, we'll store its name and the corresponding pipeline.

# Create a list of models to evaluate
models = [
    ("Logistic Regression", logreg_pipe),
    ("Logistic Regression (standardized)", logreg_std_pipe),
    ("SVM", svm_pipe),
    ("SVM (standardized)", svm_std_pipe),
]

4-element Vector{Tuple{String, MLJModelInterface.Supervised}}:
 ("Logistic Regression", LogisticClassifier(lambda = 2.220446049250313e-16, …))
 ("Logistic Regression (standardized)", ProbabilisticPipeline(standardizer = Standardizer(features = Symbol[], …), …))
 ("SVM", SVC(kernel = RadialBasis, …))
 ("SVM (standardized)", DeterministicPipeline(standardizer = Standardizer(features = Symbol[], …), …))

Now we'll loop through each model, train it, make predictions, and calculate accuracy. This will help us compare how standardization affects each model's performance.

Note: As an alternative to the explicit fit!/predict workflow below, we could use: evaluate(model, X, y, resampling=[(train, test),], measure=accuracy) This shortcut handles the training, prediction, and evaluation in one step.

# Train and evaluate each model
results = DataFrame(model = String[], accuracy = Float64[])
for (name, model) in models
    # Create a machine learning model
    mach = machine(model, X, y)

    # Train the model on the training data
    MLJ.fit!(mach, rows = train)

    # Make predictions on the test data
    # Note: Logistic regression returns probabilities, so we need to get the mode
    yhat =
        occursin("Logistic Regression", name) ?
        MLJ.predict_mode(mach, rows = test) :  # Get most likely class for logistic regression
        MLJ.predict(mach, rows = test)         # SVM directly predicts the class

    # Calculate accuracy
    acc = accuracy(yhat, y[test])

    # Store the results
    push!(results, (name, acc))
end

[ Info: Training machine(LogisticClassifier(lambda = 2.220446049250313e-16, …), …).
┌ Info: Solver: MLJLinearModels.LBFGS{Optim.Options{Float64, Nothing}, @NamedTuple{}}
│   optim_options: Optim.Options{Float64, Nothing}
└   lbfgs_options: @NamedTuple{} NamedTuple()
[ Info: Training machine(ProbabilisticPipeline(standardizer = Standardizer(features = Symbol[], …), …), …).
[ Info: Training machine(:standardizer, …).
[ Info: Training machine(:logistic_classifier, …).
┌ Info: Solver: MLJLinearModels.LBFGS{Optim.Options{Float64, Nothing}, @NamedTuple{}}
│   optim_options: Optim.Options{Float64, Nothing}
└   lbfgs_options: @NamedTuple{} NamedTuple()
[ Info: Training machine(SVC(kernel = RadialBasis, …), …).
[ Info: Training machine(DeterministicPipeline(standardizer = Standardizer(features = Symbol[], …), …), …).
[ Info: Training machine(:standardizer, …).
[ Info: Training machine(:svc, …).

Notice that if we use MLJ's evaluate! function, we can skip the explicit fit/predict steps. We chose to show the explicit steps here for clarity. See MLJ docs for more details.

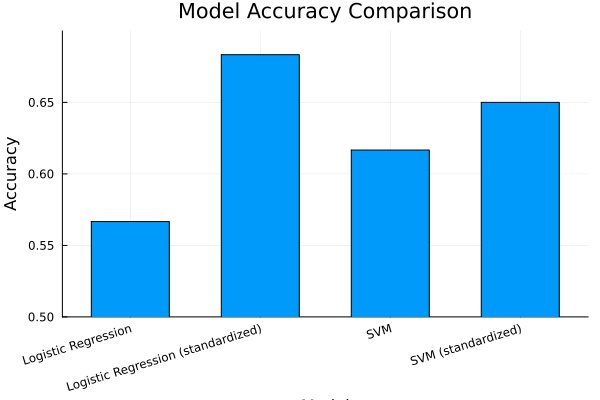

Results Visualization

Finally, let's visualize our results to see the impact of standardization. We'll create a bar chart comparing the accuracy of each model.

# Create a bar chart of model performance
p = bar(
    results.model,
    results.accuracy,
    xlabel = "Model",
    ylabel = "Accuracy",
    title = "Model Accuracy Comparison",
    legend = false,
    bar_width = 0.6,
    ylims = (0.5, 0.7),
    xrotation = 17,
);

Save the plot

Conclusion

From this tutorial, we can clearly see that standardization has a dramatic impact on model performance.

Looking at the results:

• Logistic Regression: Without standardization, it achieves only ~57% accuracy. With standardization, its performance jumps dramatically to ~68% accuracy – the best performance among all models.

• SVM: The baseline SVM achieves ~62% accuracy. When standardized, it improves to ~65% accuracy, which is a significant boost but not as dramatic as what we see with logistic regression.

Try this approach with other datasets and models to further explore the effects of standardization!
