Common MLJ Workflows

Data ingestion

using RDatasets
channing = dataset("boot", "channing")
first(channing, 4)

4 rows × 5 columns

Inspecting metadata, including column scientific types:

schema(channing)

_.table =
┌─────────┬────────────────────────────────────────────┬───────────────┐
│ _.names │ _.types                                    │ _.scitypes    │
├─────────┼────────────────────────────────────────────┼───────────────┤
│ Sex     │ CategoricalArrays.CategoricalString{UInt8} │ Multiclass{2} │
│ Entry   │ Int32                                      │ Count         │
│ Exit    │ Int32                                      │ Count         │
│ Time    │ Int32                                      │ Count         │
│ Cens    │ Int32                                      │ Count         │
└─────────┴────────────────────────────────────────────┴───────────────┘
_.nrows = 462

Unpacking data and correcting for wrong scitypes:

y, X =  unpack(channing,
               ==(:Exit),            # y is the :Exit column
               !=(:Time);            # X is the rest, except :Time
               :Exit=>Continuous,
               :Entry=>Continuous,
               :Cens=>Multiclass)
first(X, 4)

4 rows × 3 columns

Note: Before julia 1.2, replace !=(:Time) with col -> col != :Time.

y[1:4]

4-element Array{Float64,1}:
  909.0
 1128.0
  969.0
  957.0

Loading a built-in supervised dataset:

X, y = @load_iris;
selectrows(X, 1:4) # selectrows works for any Tables.jl table

(sepal_length = [5.1, 4.9, 4.7, 4.6],
 sepal_width = [3.5, 3.0, 3.2, 3.1],
 petal_length = [1.4, 1.4, 1.3, 1.5],
 petal_width = [0.2, 0.2, 0.2, 0.2],)

y[1:4]

4-element CategoricalArrays.CategoricalArray{String,1,UInt32}:
 "setosa"
 "setosa"
 "setosa"
 "setosa"

Model search (experimental)

Reference: Model Search

Searching for a supervised model:

X, y = @load_boston
models(matching(X, y))

49-element Array{NamedTuple,1}:
 (name = ARDRegressor, package_name = ScikitLearn, ... )
 (name = AdaBoostRegressor, package_name = ScikitLearn, ... )
 (name = BaggingRegressor, package_name = ScikitLearn, ... )
 (name = BayesianRidgeRegressor, package_name = ScikitLearn, ... )
 (name = ConstantRegressor, package_name = MLJModels, ... )
 (name = DecisionTreeRegressor, package_name = DecisionTree, ... )
 (name = DeterministicConstantRegressor, package_name = MLJModels, ... )
 (name = DummyRegressor, package_name = ScikitLearn, ... )
 (name = ElasticNetCVRegressor, package_name = ScikitLearn, ... )
 (name = ElasticNetRegressor, package_name = MLJLinearModels, ... )
 ⋮
 (name = RidgeRegressor, package_name = MultivariateStats, ... )
 (name = RidgeRegressor, package_name = ScikitLearn, ... )
 (name = RobustRegressor, package_name = MLJLinearModels, ... )
 (name = SGDRegressor, package_name = ScikitLearn, ... )
 (name = SVMLRegressor, package_name = ScikitLearn, ... )
 (name = SVMNuRegressor, package_name = ScikitLearn, ... )
 (name = SVMRegressor, package_name = ScikitLearn, ... )
 (name = TheilSenRegressor, package_name = ScikitLearn, ... )
 (name = XGBoostRegressor, package_name = XGBoost, ... )

models(matching(X, y))[6]

CART decision tree regressor.
→ based on [DecisionTree](https://github.com/bensadeghi/DecisionTree.jl).
→ do `@load DecisionTreeRegressor pkg="DecisionTree"` to use the model.
→ do `?DecisionTreeRegressor` for documentation.
(name = "DecisionTreeRegressor",
 package_name = "DecisionTree",
 is_supervised = true,
 docstring = "CART decision tree regressor.\n→ based on [DecisionTree](https://github.com/bensadeghi/DecisionTree.jl).\n→ do `@load DecisionTreeRegressor pkg=\"DecisionTree\"` to use the model.\n→ do `?DecisionTreeRegressor` for documentation.",
 hyperparameter_ranges = (nothing, nothing, nothing, nothing, nothing, nothing, nothing),
 hyperparameter_types = ("Int64", "Int64", "Int64", "Float64", "Int64", "Bool", "Float64"),
 hyperparameters = (:max_depth, :min_samples_leaf, :min_samples_split, :min_purity_increase, :n_subfeatures, :post_prune, :merge_purity_threshold),
 implemented_methods = Symbol[:fit, :predict, :fitted_params],
 is_pure_julia = true,
 is_wrapper = false,
 load_path = "MLJModels.DecisionTree_.DecisionTreeRegressor",
 package_license = "MIT",
 package_url = "https://github.com/bensadeghi/DecisionTree.jl",
 package_uuid = "7806a523-6efd-50cb-b5f6-3fa6f1930dbb",
 prediction_type = :deterministic,
 supports_online = false,
 supports_weights = false,
 input_scitype = Table{_s13} where _s13<:Union{AbstractArray{_s12,1} where _s12<:Continuous, AbstractArray{_s12,1} where _s12<:Count, AbstractArray{_s12,1} where _s12<:OrderedFactor},
 target_scitype = AbstractArray{Continuous,1},)

More refined searches:

models() do model
    matching(model, X, y) &&
    model.prediction_type == :deterministic &&
    model.is_pure_julia
end

13-element Array{NamedTuple,1}:
 (name = DecisionTreeRegressor, package_name = DecisionTree, ... )
 (name = DeterministicConstantRegressor, package_name = MLJModels, ... )
 (name = ElasticNetRegressor, package_name = MLJLinearModels, ... )
 (name = HuberRegressor, package_name = MLJLinearModels, ... )
 (name = KNNRegressor, package_name = NearestNeighbors, ... )
 (name = LADRegressor, package_name = MLJLinearModels, ... )
 (name = LassoRegressor, package_name = MLJLinearModels, ... )
 (name = LinearRegressor, package_name = MLJLinearModels, ... )
 (name = QuantileRegressor, package_name = MLJLinearModels, ... )
 (name = RandomForestRegressor, package_name = DecisionTree, ... )
 (name = RidgeRegressor, package_name = MLJLinearModels, ... )
 (name = RidgeRegressor, package_name = MultivariateStats, ... )
 (name = RobustRegressor, package_name = MLJLinearModels, ... )

Searching for an unsupervised model:

models(matching(X))

11-element Array{NamedTuple,1}:
 (name = FeatureSelector, package_name = MLJModels, ... )
 (name = FillImputer, package_name = MLJModels, ... )
 (name = ICA, package_name = MultivariateStats, ... )
 (name = KMeans, package_name = Clustering, ... )
 (name = KMedoids, package_name = Clustering, ... )
 (name = KernelPCA, package_name = MultivariateStats, ... )
 (name = OneClassSVM, package_name = LIBSVM, ... )
 (name = OneHotEncoder, package_name = MLJModels, ... )
 (name = PCA, package_name = MultivariateStats, ... )
 (name = Standardizer, package_name = MLJModels, ... )
 (name = StaticTransformer, package_name = MLJBase, ... )

Getting the metadata entry for a given model type:

info("PCA")
info("RidgeRegressor", pkg="MultivariateStats") # a model type in multiple packages

Ridge regressor with regularization parameter lambda. Learns a linear regression with a penalty on the l2 norm of the coefficients.
→ based on [MultivariateStats](https://github.com/JuliaStats/MultivariateStats.jl).
→ do `@load RidgeRegressor pkg="MultivariateStats"` to use the model.
→ do `?RidgeRegressor` for documentation.
(name = "RidgeRegressor",
 package_name = "MultivariateStats",
 is_supervised = true,
 docstring = "Ridge regressor with regularization parameter lambda. Learns a linear regression with a penalty on the l2 norm of the coefficients.\n→ based on [MultivariateStats](https://github.com/JuliaStats/MultivariateStats.jl).\n→ do `@load RidgeRegressor pkg=\"MultivariateStats\"` to use the model.\n→ do `?RidgeRegressor` for documentation.",
 hyperparameter_ranges = (nothing,),
 hyperparameter_types = ("Real",),
 hyperparameters = (:lambda,),
 implemented_methods = Symbol[:fit, :predict, :fitted_params],
 is_pure_julia = true,
 is_wrapper = false,
 load_path = "MLJModels.MultivariateStats_.RidgeRegressor",
 package_license = "MIT",
 package_url = "https://github.com/JuliaStats/MultivariateStats.jl",
 package_uuid = "6f286f6a-111f-5878-ab1e-185364afe411",
 prediction_type = :deterministic,
 supports_online = false,
 supports_weights = false,
 input_scitype = Table{_s13} where _s13<:(AbstractArray{_s12,1} where _s12<:Continuous),
 target_scitype = AbstractArray{Continuous,1},)

Instantiating a model

Reference: Getting Started

@load DecisionTreeClassifier
model = DecisionTreeClassifier(min_samples_split=5, max_depth=4)

DecisionTreeClassifier(
    max_depth = 4,
    min_samples_leaf = 1,
    min_samples_split = 5,
    min_purity_increase = 0.0,
    n_subfeatures = 0,
    post_prune = false,
    merge_purity_threshold = 1.0,
    pdf_smoothing = 0.0,
    display_depth = 5) @ 9…94

or

model = @load DecisionTreeClassifier
model.min_samples_split = 5
model.max_depth = 4

Evaluating a model

Reference: Evaluating Model Performance

X, y = @load_boston
model = @load KNNRegressor
evaluate(model, X, y, resampling=CV(nfolds=5), measure=[rms, mav])

┌───────────┬───────────────┬────────────────────────────────┐
│ _.measure │ _.measurement │ _.per_fold                     │
├───────────┼───────────────┼────────────────────────────────┤
│ rms       │ 8.82          │ [8.53, 8.52, 10.7, 9.39, 6.32] │
│ mav       │ 6.07          │ [6.49, 5.43, 7.61, 6.03, 4.79] │
└───────────┴───────────────┴────────────────────────────────┘
_.per_observation = [missing, missing]

Basic fit/evaluate/predict by hand:

Reference: Getting Started, Machines, Evaluating Model Performance, Performance Measures

using RDatasets
vaso = dataset("robustbase", "vaso"); # a DataFrame
first(vaso, 3)

3 rows × 3 columns

y, X = unpack(vaso, ==(:Y), c -> true; :Y => Multiclass)

tree_model = @load DecisionTreeClassifier

┌ Info: A model type "DecisionTreeClassifier" is already loaded.
└ No new code loaded.

Bind the model and data together in a machine , which will additionally store the learned parameters (fitresults) when fit:

tree = machine(tree_model, X, y)

Machine{DecisionTreeClassifier} @ 1…78

Split row indices into training and evaluation rows:

train, test = partition(eachindex(y), 0.7, shuffle=true, rng=1234); # 70:30 split

([27, 28, 30, 31, 32, 18, 21, 9, 26, 14  …  7, 39, 2, 37, 1, 8, 19, 25, 35, 34], [22, 13, 11, 4, 10, 16, 3, 20, 29, 23, 12, 24])

Fit on train and evaluate on test:

fit!(tree, rows=train)
yhat = predict(tree, rows=test);
mean(cross_entropy(yhat, y[test]))

6.5216583816514975

Predict on new data:

Xnew = (Volume=3*rand(3), Rate=3*rand(3))
predict(tree, Xnew)      # a vector of distributions

3-element Array{UnivariateFinite{Int64,UInt32,Float64},1}:
 UnivariateFinite(0=>0.0, 1=>1.0)
 UnivariateFinite(0=>0.273, 1=>0.727)
 UnivariateFinite(0=>0.273, 1=>0.727)

predict_mode(tree, Xnew) # a vector of point-predictions

3-element CategoricalArrays.CategoricalArray{Int64,1,UInt32}:
 1
 1
 1

More performance evaluation examples

import LossFunctions.ZeroOneLoss

Evaluating model + data directly:

evaluate(tree_model, X, y,
         resampling=Holdout(fraction_train=0.7, shuffle=true, rng=1234),
         measure=[cross_entropy, ZeroOneLoss()])

┌───────────────┬───────────────┬────────────┐
│ _.measure     │ _.measurement │ _.per_fold │
├───────────────┼───────────────┼────────────┤
│ cross_entropy │ 6.52          │ [6.52]     │
│ ZeroOneLoss   │ 0.417         │ [0.417]    │
└───────────────┴───────────────┴────────────┘
_.per_observation = [[[0.105, 36.0, ..., 1.3]], [[0.0, 1.0, ..., 1.0]]]

If a machine is already defined, as above:

evaluate!(tree,
          resampling=Holdout(fraction_train=0.7, shuffle=true, rng=1234),
          measure=[cross_entropy, ZeroOneLoss()])

┌───────────────┬───────────────┬────────────┐
│ _.measure     │ _.measurement │ _.per_fold │
├───────────────┼───────────────┼────────────┤
│ cross_entropy │ 6.52          │ [6.52]     │
│ ZeroOneLoss   │ 0.417         │ [0.417]    │
└───────────────┴───────────────┴────────────┘
_.per_observation = [[[0.105, 36.0, ..., 1.3]], [[0.0, 1.0, ..., 1.0]]]

Using cross-validation:

evaluate!(tree, resampling=CV(nfolds=5, shuffle=true, rng=1234),
          measure=[cross_entropy, ZeroOneLoss()])

┌───────────────┬───────────────┬───────────────────────────────────┐
│ _.measure     │ _.measurement │ _.per_fold                        │
├───────────────┼───────────────┼───────────────────────────────────┤
│ cross_entropy │ 3.91          │ [10.6, 0.676, 0.495, 0.717, 7.11] │
│ ZeroOneLoss   │ 0.377         │ [0.571, 0.429, 0.0, 0.429, 0.455] │
└───────────────┴───────────────┴───────────────────────────────────┘
_.per_observation = [[[2.22e-16, 0.944, ..., 0.944], [1.23, 2.22e-16, ..., 0.345], [0.693, 0.693, ..., 0.693], [0.363, 1.19, ..., 1.19], [36.0, 0.0953, ..., 1.3]], [[0.0, 1.0, ..., 1.0], [1.0, 0.0, ..., 0.0], [0.0, 0.0, ..., 0.0], [0.0, 1.0, ..., 1.0], [1.0, 0.0, ..., 1.0]]]

With user-specified train/test pairs of row indices:

f1, f2, f3 = 1:13, 14:26, 27:36
pairs = [(f1, vcat(f2, f3)), (f2, vcat(f3, f1)), (f3, vcat(f1, f2))];
evaluate!(tree,
          resampling=pairs,
          measure=[cross_entropy, ZeroOneLoss()])

┌───────────────┬───────────────┬───────────────────────┐
│ _.measure     │ _.measurement │ _.per_fold            │
├───────────────┼───────────────┼───────────────────────┤
│ cross_entropy │ 5.88          │ [2.16, 11.0, 4.51]    │
│ ZeroOneLoss   │ 0.241         │ [0.304, 0.304, 0.115] │
└───────────────┴───────────────┴───────────────────────┘
_.per_observation = [[[0.154, 0.154, ..., 0.154], [2.22e-16, 36.0, ..., 2.22e-16], [2.22e-16, 2.22e-16, ..., 0.693]], [[0.0, 0.0, ..., 0.0], [0.0, 1.0, ..., 0.0], [0.0, 0.0, ..., 0.0]]]

Changing a hyperparameter and re-evaluating:

tree_model.max_depth = 3
evaluate!(tree,
          resampling=CV(nfolds=5, shuffle=true, rng=1234),
          measure=[cross_entropy, ZeroOneLoss()])

┌───────────────┬───────────────┬─────────────────────────────────────┐
│ _.measure     │ _.measurement │ _.per_fold                          │
├───────────────┼───────────────┼─────────────────────────────────────┤
│ cross_entropy │ 5.47          │ [10.5, 0.532, 0.389, 5.63, 10.3]    │
│ ZeroOneLoss   │ 0.377         │ [0.429, 0.429, 0.143, 0.429, 0.455] │
└───────────────┴───────────────┴─────────────────────────────────────┘
_.per_observation = [[[2.22e-16, 1.32, ..., 2.22e-16], [0.887, 2.22e-16, ..., 2.22e-16], [0.405, 0.405, ..., 1.1], [2.22e-16, 0.827, ..., 0.827], [36.0, 0.288, ..., 2.2]], [[0.0, 1.0, ..., 0.0], [1.0, 0.0, ..., 0.0], [0.0, 0.0, ..., 1.0], [0.0, 1.0, ..., 1.0], [1.0, 0.0, ..., 1.0]]]

Inspecting training results

Fit a ordinary least square model to some synthetic data:

x1 = rand(100)
x2 = rand(100)

X = (x1=x1, x2=x2)
y = x1 - 2x2 + 0.1*rand(100);

ols_model = @load LinearRegressor pkg=GLM
ols =  machine(ols_model, X, y)
fit!(ols)

Machine{LinearRegressor} @ 5…32

Get a named tuple representing the learned parameters, human-readable if appropriate:

fitted_params(ols)

(coef = [1.014856406802105, -2.0099582504333346],
 intercept = 0.05167929582996633,)

Get other training-related information:

report(ols)

(deviance = 0.08029492971630983,
 dof_residual = 97.0,
 stderror = [0.009734201944682372, 0.009233448013839254, 0.007113896443524906],
 vcov = [9.475468749985808e-5 -6.992301318089999e-6 -4.205649743475585e-5; -6.992301318089999e-6 8.525656222427209e-5 -4.167621342137693e-5; -4.205649743475585e-5 -4.167621342137693e-5 5.060752260919631e-5],)

Basic fit/transform for unsupervised models

Load data:

X, y = @load_iris
train, test = partition(eachindex(y), 0.97, shuffle=true, rng=123)

([125, 100, 130, 9, 70, 148, 39, 64, 6, 107  …  110, 59, 139, 21, 112, 144, 140, 72, 109, 41], [106, 147, 47, 5])

Instantiate and fit the model/machine:

@load PCA
pca_model = PCA(maxoutdim=2)
pca = machine(pca_model, X)
fit!(pca, rows=train)

Machine{PCA} @ 1…98

Transform selected data bound to the machine:

transform(pca, rows=test);

(x1 = [-3.3942826854483243, -1.5219827578765068, 2.538247455185219, 2.7299639893931373],
 x2 = [0.5472450223745241, -0.36842368617126214, 0.5199299511335698, 0.3448466122232363],)

Transform new data:

Xnew = (sepal_length=rand(3), sepal_width=rand(3),
        petal_length=rand(3), petal_width=rand(3));
transform(pca, Xnew)

(x1 = [5.020946674915796, 4.485504558406022, 4.465166636994135],
 x2 = [-4.9586673813068005, -5.214435617710437, -4.645350477231649],)

Inverting learned transformations

y = rand(100);
stand_model = UnivariateStandardizer()
stand = machine(stand_model, y)
fit!(stand)
z = transform(stand, y);
@assert inverse_transform(stand, z) ≈ y # true

[ Info: Training Machine{UnivariateStandardizer} @ 6…38.

Nested hyperparameter tuning

Reference: Tuning Models

Define a model with nested hyperparameters:

tree_model = @load DecisionTreeClassifier
forest_model = EnsembleModel(atom=tree_model, n=300)

ProbabilisticEnsembleModel(
    atom = DecisionTreeClassifier(
            max_depth = -1,
            min_samples_leaf = 1,
            min_samples_split = 2,
            min_purity_increase = 0.0,
            n_subfeatures = 0,
            post_prune = false,
            merge_purity_threshold = 1.0,
            pdf_smoothing = 0.0,
            display_depth = 5),
    atomic_weights = Float64[],
    bagging_fraction = 0.8,
    rng = MersenneTwister(UInt32[0x47c03f76, 0x2c4136ea, 0x861b2316, 0x4ad3f251]) @ 103,
    n = 300,
    acceleration = ComputationalResources.CPU1{Nothing}(nothing),
    out_of_bag_measure = Any[]) @ 8…40

Inspect all hyperparameters, even nested ones (returns nested named tuple):

params(forest_model)

(atom = (max_depth = -1,
         min_samples_leaf = 1,
         min_samples_split = 2,
         min_purity_increase = 0.0,
         n_subfeatures = 0,
         post_prune = false,
         merge_purity_threshold = 1.0,
         pdf_smoothing = 0.0,
         display_depth = 5,),
 atomic_weights = Float64[],
 bagging_fraction = 0.8,
 rng = MersenneTwister(UInt32[0x47c03f76, 0x2c4136ea, 0x861b2316, 0x4ad3f251]) @ 103,
 n = 300,
 acceleration = ComputationalResources.CPU1{Nothing}(nothing),
 out_of_bag_measure = Any[],)

Define ranges for hyperparameters to be tuned:

r1 = range(forest_model, :bagging_fraction, lower=0.5, upper=1.0, scale=:log10)

NumericRange(
    field = :bagging_fraction,
    lower = 0.5,
    upper = 1.0,
    origin = 0.75,
    unit = 0.25,
    scale = :log10) @ 1…04

r2 = range(forest_model, :(atom.n_subfeatures), lower=1, upper=4) # nested

NumericRange(
    field = :(atom.n_subfeatures),
    lower = 1,
    upper = 4,
    origin = 2.5,
    unit = 1.5,
    scale = :linear) @ 1…05

Wrap the model in a tuning strategy:

tuned_forest = TunedModel(model=forest_model,
                          tuning=Grid(resolution=12),
                          resampling=CV(nfolds=6),
                          ranges=[r1, r2],
                          measure=cross_entropy)

ProbabilisticTunedModel(
    model = ProbabilisticEnsembleModel(
            atom = DecisionTreeClassifier @ 1…63,
            atomic_weights = Float64[],
            bagging_fraction = 0.8,
            rng = MersenneTwister(UInt32[0x47c03f76, 0x2c4136ea, 0x861b2316, 0x4ad3f251]) @ 103,
            n = 300,
            acceleration = ComputationalResources.CPU1{Nothing}(nothing),
            out_of_bag_measure = Any[]),
    tuning = Grid(
            resolution = 12,
            acceleration = ComputationalResources.CPU1{Nothing}(nothing)),
    resampling = CV(
            nfolds = 6,
            shuffle = false,
            rng = MersenneTwister(UInt32[0x47c03f76, 0x2c4136ea, 0x861b2316, 0x4ad3f251]) @ 103),
    measure = CrossEntropy(
            eps = 2.220446049250313e-16),
    weights = nothing,
    operation = StatsBase.predict,
    ranges = NumericRange{MLJBase.Bounded,T,Symbol} where T[NumericRange @ 1…04, NumericRange @ 1…05],
    full_report = true,
    train_best = true,
    repeats = 1) @ 9…34

Bound the wrapped model to data:

tuned = machine(tuned_forest, X, y)

Machine{ProbabilisticTunedModel} @ 9…74

Fitting the resultant machine optimizes the hyperaparameters specified in range, using the specified tuning and resampling strategies and performance measure (possibly a vector of measures), and retrains on all data bound to the machine:

fit!(tuned)

Machine{ProbabilisticTunedModel} @ 9…74

Inspecting the optimal model:

F = fitted_params(tuned)

(best_model = ProbabilisticEnsembleModel{DecisionTreeClassifier} @ 8…47,
 best_fitted_params = (fitresult = WrappedEnsemble @ 1…22,),)

F.best_model

ProbabilisticEnsembleModel(
    atom = DecisionTreeClassifier(
            max_depth = -1,
            min_samples_leaf = 1,
            min_samples_split = 2,
            min_purity_increase = 0.0,
            n_subfeatures = 3,
            post_prune = false,
            merge_purity_threshold = 1.0,
            pdf_smoothing = 0.0,
            display_depth = 5),
    atomic_weights = Float64[],
    bagging_fraction = 0.6040447222022236,
    rng = MersenneTwister(UInt32[0x47c03f76, 0x2c4136ea, 0x861b2316, 0x4ad3f251]) @ 747,
    n = 300,
    acceleration = ComputationalResources.CPU1{Nothing}(nothing),
    out_of_bag_measure = Any[]) @ 8…47

Inspecting details of tuning procedure:

report(tuned)

(parameter_names = ["bagging_fraction" "atom.n_subfeatures"],
 parameter_scales = Symbol[:log10 :linear],
 best_measurement = 0.15482036371032085,
 best_report = (measures = Any[],
                oob_measurements = missing,),
 parameter_values = Any[0.5 1; 0.5325205447199813 1; … ; 0.9389309106617063 4; 1.0 4],
 measurements = [0.21534391030896025, 0.21819242425407892, 0.21083086862471032, 0.21062331572020118, 0.20143827595698505, 0.21325662234887452, 0.1959983990972185, 0.2088293410624006, 0.22164521608178123, 0.19486003193571125  …  0.1673363008872999, 0.1712625485095091, 0.17545372860277597, 0.40470613366972313, 0.20284315870791336, 0.633737683291989, 0.43764175364915986, 0.6443458093091506, 0.877868832382005, 2.425319130101292],)

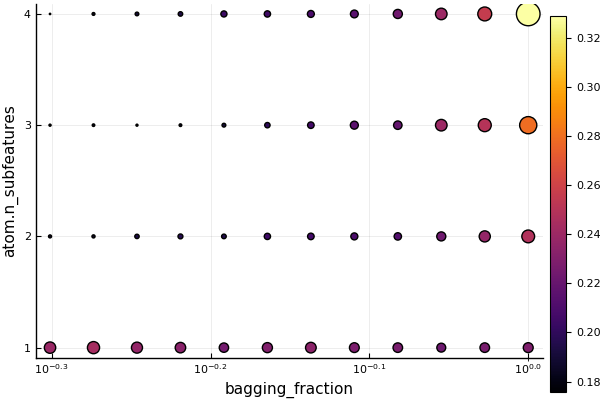

Visualizing these results:

using Plots
plot(tuned)

Predicting on new data using the optimized model:

predict(tuned, Xnew)

3-element Array{UnivariateFinite{String,UInt32,Float64},1}:
 UnivariateFinite(setosa=>1.0, versicolor=>0.0, virginica=>0.0)
 UnivariateFinite(setosa=>0.5, versicolor=>0.46, virginica=>0.04)
 UnivariateFinite(setosa=>0.903, versicolor=>0.08, virginica=>0.0167)

Constructing a linear pipeline

Reference: Composing Models

Constructing a linear (unbranching) pipeline with a learned target transformation/inverse transformation:

X, y = @load_reduced_ames
@load KNNRegressor
pipe = @pipeline MyPipe(X -> coerce(X, :age=>Continuous),
                               hot = OneHotEncoder(),
                               knn = KNNRegressor(K=3),
                               target = UnivariateStandardizer())

MyPipe(
    hot = OneHotEncoder(
            features = Symbol[],
            drop_last = false,
            ordered_factor = true),
    knn = KNNRegressor(
            K = 3,
            algorithm = :kdtree,
            metric = Distances.Euclidean(0.0),
            leafsize = 10,
            reorder = true,
            weights = :uniform),
    target = UnivariateStandardizer()) @ 1…51

Evaluating the pipeline (just as you would any other model):

pipe.knn.K = 2
pipe.hot.drop_last = true
evaluate(pipe, X, y, resampling=Holdout(), measure=rms, verbosity=2)

┌───────────┬───────────────┬────────────┐
│ _.measure │ _.measurement │ _.per_fold │
├───────────┼───────────────┼────────────┤
│ rms       │ 53100.0       │ [53100.0]  │
└───────────┴───────────────┴────────────┘
_.per_observation = [missing]

Constructing a linear (unbranching) pipeline with a static (unlearned) target transformation/inverse transformation:

@load DecisionTreeRegressor
pipe2 = @pipeline MyPipe2(X -> coerce(X, :age=>Continuous),
                               hot = OneHotEncoder(),
                               tree = DecisionTreeRegressor(max_depth=4),
                               target = y -> log.(y),
                               inverse = z -> exp.(z))

MyPipe2(
    hot = OneHotEncoder(
            features = Symbol[],
            drop_last = false,
            ordered_factor = true),
    tree = DecisionTreeRegressor(
            max_depth = 4,
            min_samples_leaf = 5,
            min_samples_split = 2,
            min_purity_increase = 0.0,
            n_subfeatures = 0,
            post_prune = false,
            merge_purity_threshold = 1.0),
    target = StaticTransformer(
            f = getfield(Main.ex-workflows, Symbol("##24#25"))()),
    inverse = StaticTransformer(
            f = getfield(Main.ex-workflows, Symbol("##26#27"))())) @ 3…08

Creating a homogeneous ensemble of models

Reference: Homogeneous Ensembles

X, y = @load_iris
tree_model = @load DecisionTreeClassifier
forest_model = EnsembleModel(atom=tree_model, bagging_fraction=0.8, n=300)
forest = machine(forest_model, X, y)
evaluate!(forest, measure=cross_entropy)

┌───────────────┬───────────────┬──────────────────────────────────────────────┐
│ _.measure     │ _.measurement │ _.per_fold                                   │
├───────────────┼───────────────┼──────────────────────────────────────────────┤
│ cross_entropy │ 0.629         │ [3.66e-15, 3.66e-15, 0.3, 1.61, 1.56, 0.301] │
└───────────────┴───────────────┴──────────────────────────────────────────────┘
_.per_observation = [[[3.66e-15, 3.66e-15, ..., 3.66e-15], [3.66e-15, 3.66e-15, ..., 3.66e-15], [0.0305, 0.00334, ..., 3.66e-15], [3.66e-15, 0.135, ..., 3.66e-15], [3.66e-15, 0.0339, ..., 3.66e-15], [0.0339, 0.483, ..., 0.0583]]]

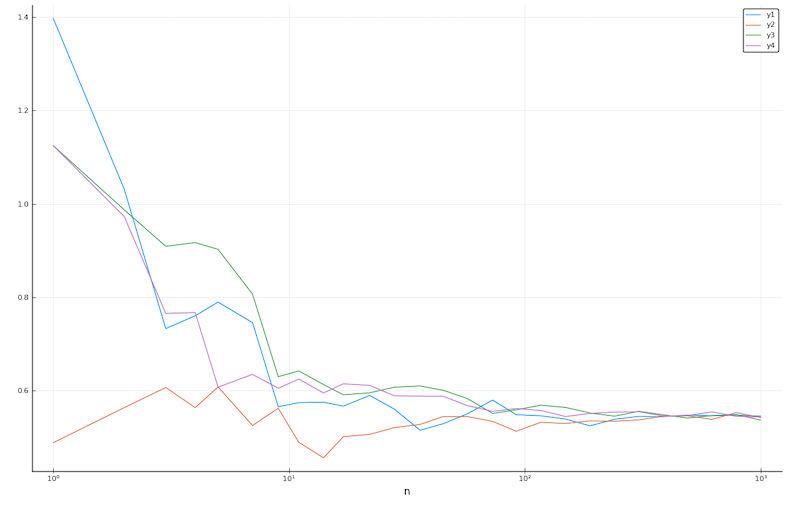

Performance curves

Generate a plot of performance, as a function of some hyperparameter (building on the preceding example):

r = range(forest_model, :n, lower=1, upper=1000, scale=:log10)
curve = MLJ.learning_curve!(forest,
                            range=r,
                            resampling=Holdout(),
                            measure=cross_entropy,
                            n=4,
                            verbosity=0)

(parameter_name = "n",
 parameter_scale = :log10,
 parameter_values = [1, 2, 3, 4, 5, 7, 9, 11, 14, 17  …  117, 149, 189, 240, 304, 386, 489, 621, 788, 1000],
 measurements = [13.616491280333147 12.014551129705719 9.611640903764574 8.009700753137146; 8.256153084002902 4.1588830833596715 9.611640903764574 5.683806880591551; … ; 1.247976052355591 0.5782817230195656 1.2574856741696 1.2316361904504538; 1.2569091425094638 0.5924629399391862 1.2631028701131062 1.2318603821954464],)

using Plots
plot(curve.parameter_values, curve.measurements, xlab=curve.parameter_name, xscale=curve.parameter_scale)
