Tuning models

r = range(model, :hyper; values=nothing)

Define a one-dimensional NominalRange object for a field hyper of model. Note that r is not directly iterable but iterator(r) is.

By default, the behaviour of range methods depends on the type of the value of the hyperparameter :hyper at model during range construction.

To override this behaviour (for instance if model is not available) specify a type in place of model so the behaviour depends on the value of the specified type.

A nested hyperparameter is specified using dot notation. For example, :(atom.max_depth) specifies the max_depth hyperparameter of the submodel model.atom.

r = range(model, :hyper; upper=nothing, lower=nothing,
          scale=nothing, values=nothing)

Assuming values is not specified, defines a one-dimensional NumericRange object for a Real field hyper of model. Note that r is not directly iteratable but iterator(r, n)is an iterator of length n. To generate random elements from r, instead apply rand methods to sampler(r). The supported scales are :linear,:log, :logminus, :log10, :log2, or a callable object.

A nested hyperparameter is specified using dot notation (see above).

If scale is unspecified, it is set to :linear, :log, :logminus, or :linear, according to whether the interval (lower, upper) is bounded, right-unbounded, left-unbounded, or doubly unbounded, respectively. Note upper=Inf and lower=-Inf are allowed.

If values is specified, the other keyword arguments are ignored and a NominalRange object is returned (see above).

See also: iterator, sampler

iterator([rng, ], r::NominalRange, [,n])
iterator([rng, ], r::NumericRange, n)

Return an iterator (currently a vector) for a ParamRange object r. In the first case iteration is over all values stored in the range (or just the first n, if n is specified). In the second case, the iteration is over approximately n ordered values, generated as follows:

(i) First, exactly n values are generated between U and L, with a spacing determined by r.scale (uniform if scale=:linear) where U and L are given by the following table:

(ii) If a callable f is provided as scale, then a uniform spacing is always applied in (i) but f is broadcast over the results. (Unlike ordinary scales, this alters the effective range of values generated, instead of just altering the spacing.)

(iii) If r is a discrete numeric range (r isa NumericRange{<:Integer}) then the values are additionally rounded, with any duplicate values removed. Otherwise all the values are used (and there are exacltly n of them).

(iv) Finally, if a random number generator rng is specified, then the values are returned in random order (sampling without replacement), and otherwise they are returned in numeric order, or in the order provided to the range constructor, in the case of a NominalRange.

sampler(r::NominalRange, probs::AbstractVector{<:Real})
sampler(r::NominalRange)
sampler(r::NumericRange{T}, d)

Construct an object s which can be used to generate random samples from a ParamRange object r (a one-dimensional range) using one of the following calls:

rand(s)             # for one sample
rand(s, n)          # for n samples
rand(rng, s [, n])  # to specify an RNG

The argument probs can be any probability vector with the same length as r.values. The second sampler method above calls the first with a uniform probs vector.

The argument d can be either an arbitrary instance of UnivariateDistribution from the Distributions.jl package, or one of a Distributions.jl types for which fit(d, ::NumericRange) is defined. These include: Arcsine, Uniform, Biweight, Cosine, Epanechnikov, SymTriangularDist, Triweight, Normal, Gamma, InverseGaussian, Logistic, LogNormal, Cauchy, Gumbel, Laplace, and Poisson; but see the doc-string for Distributions.fit for an up-to-date list.

If d is an instance, then sampling is from a truncated form of the supplied distribution d, the truncation bounds being r.lower and r.upper (the attributes r.origin and r.unit attributes are ignored). For discrete numeric ranges (T <: Integer) the samples are rounded.

If d is a type then a suitably truncated distribution is automatically generated using Distributions.fit(d, r).

Important. Values are generated with no regard to r.scale, except in the special case r.scale is a callable object f. In that case, f is applied to all values generated by rand as described above (prior to rounding, in the case of discrete numeric ranges).

Examples

r = range(Char, :letter, values=collect("abc"))
s = sampler(r, [0.1, 0.2, 0.7])
samples =  rand(s, 1000);
StatsBase.countmap(samples)
Dict{Char,Int64} with 3 entries:
  'a' => 107
  'b' => 205
  'c' => 688

r = range(Int, :k, lower=2, upper=6) # numeric but discrete
s = sampler(r, Normal)
samples = rand(s, 1000);
UnicodePlots.histogram(samples)
           ┌                                        ┐
[2.0, 2.5) ┤▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 119
[2.5, 3.0) ┤ 0
[3.0, 3.5) ┤▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 296
[3.5, 4.0) ┤ 0
[4.0, 4.5) ┤▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 275
[4.5, 5.0) ┤ 0
[5.0, 5.5) ┤▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 221
[5.5, 6.0) ┤ 0
[6.0, 6.5) ┤▇▇▇▇▇▇▇▇▇▇▇ 89
           └                                        ┘

Distributions.fit(D, r::MLJBase.NumericRange)

Fit and return a distribution d of type D to the one-dimensional range r.

Only types D in the table below are supported.

The distribution d is constructed in two stages. First, a distributon d0, characterized by the conditions in the second column of the table, is fit to r. Then d0 is truncated between r.lower and r.upper to obtain d.

Here Dist = Distributions.

tuned_model = TunedModel(; model=nothing,
                         tuning=Grid(),
                         resampling=Holdout(),
                         measure=nothing,
                         weights=nothing,
                         repeats=1,
                         operation=predict,
                         range=nothing,
                         n=default_n(tuning, range),
                         train_best=true,
                         acceleration=default_resource(),
                         acceleration_resampling=CPU1(),
                         check_measure=true)

Construct a model wrapper for hyperparameter optimization of a supervised learner.

Calling fit!(mach) on a machine mach=machine(tuned_model, X, y) or mach=machine(tuned_model, X, y, w) will:

• Instigate a search, over clones of model, with the hyperparameter mutations specified by range, for a model optimizing the specified measure, using performance evaluations carried out using the specified tuning strategy and resampling strategy.

• Fit an internal machine, based on the optimal model fitted_params(mach).best_model, wrapping the optimal model object in all the provided data X, y(, w). Calling predict(mach, Xnew) then returns predictions on Xnew of this internal machine. The final train can be supressed by setting train_best=false.

The range objects supported depend on the tuning strategy specified. Query the strategy docstring for details. To optimize over an explicit list v of models of the same type, use strategy=Explicit() and specify model=v[1] and range=v.

The number of models searched is specified by n. If unspecified, then MLJTuning.default_n(tuning, range) is used. When n is increased and fit!(mach) called again, the old search history is re-instated and the search continues where it left off.

If measure supports weights (supports_weights(measure) == true) then any weights specified will be passed to the measure. If more than one measure is specified, then only the first is optimized (unless strategy is multi-objective) but the performance against every measure specified will be computed and reported in report(mach).best_performance and other relevant attributes of the generated report.

Specify repeats > 1 for repeated resampling per model evaluation. See evaluate! options for details.

Important. If a custom measure is used, and the measure is a score, rather than a loss, be sure to check that MLJ.orientation(measure) == :score to ensure maximization of the measure, rather than minimization. Override an incorrect value with MLJ.orientation(::typeof(measure)) = :score.

Important: If weights are left unspecified, and measure supports sample weights, then any weight vector w used in constructing a corresponding tuning machine, as in tuning_machine = machine(tuned_model, X, y, w) (which is then used in training each model in the search) will also be passed to measure for evaluation.

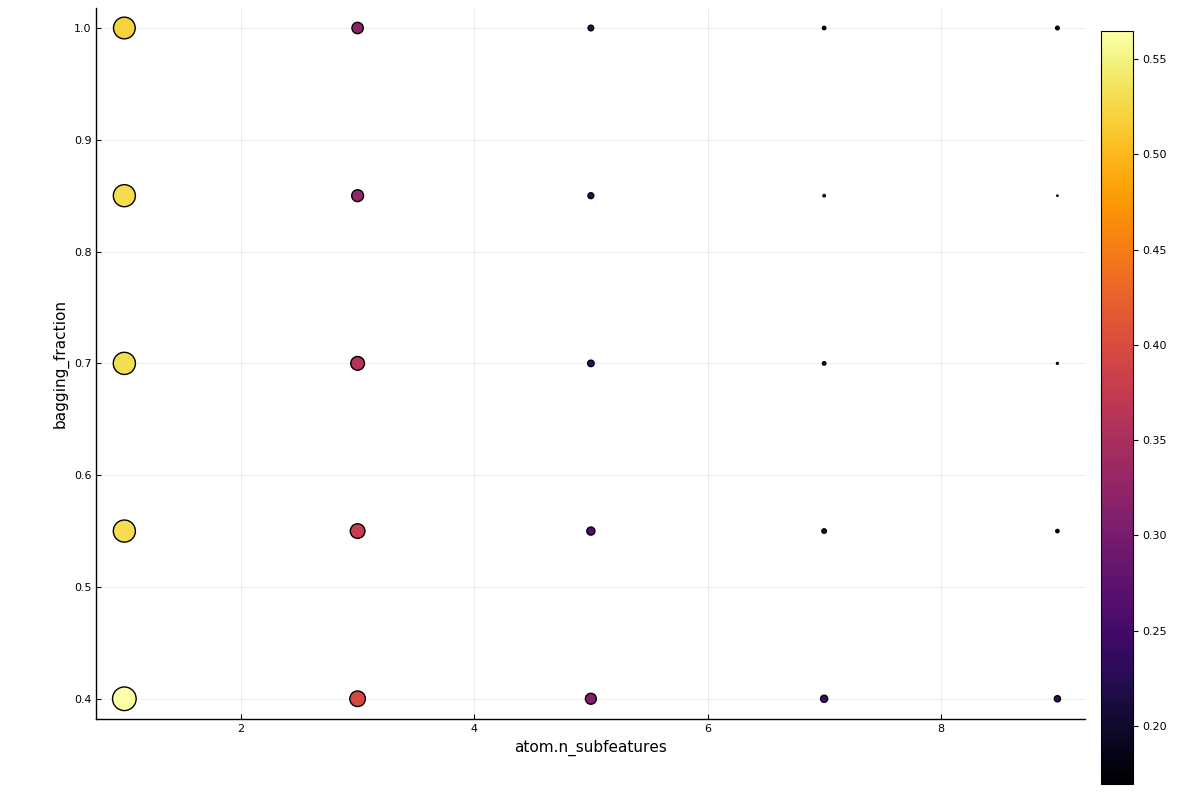

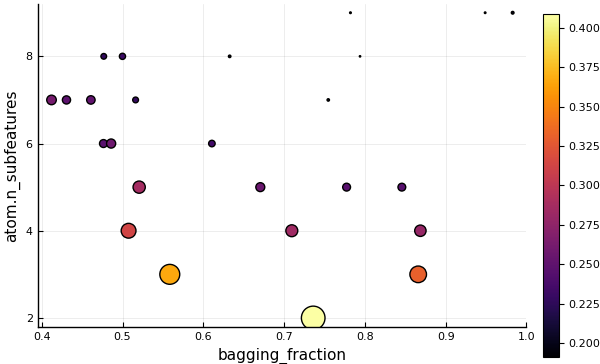

In the case of two-parameter tuning, a Plots.jl plot of performance estimates is returned by plot(mach) or heatmap(mach).

Once a tuning machine mach has bee trained as above, then fitted_params(mach) has these keys/values: key | value ––––––––––|––––––––––––––––––––––––– best_model | optimal model instance best_fitted_params| learned parameters of the optimal model The named tuple report(mach) includes these keys/values: key | value ––––––––––|––––––––––––––––––––––––– best_model | optimal model instance best_result | corresponding "result" entry in the history best_report | report generated by fitting the optimal model history | tuning strategy-specific history of all evaluations plus others specific to the tuning strategy, such as history=....

Summary of key-word arguments

• model: Supervised model prototype that is cloned and mutated to generate models for evaluation

• tuning=Grid(): tuning strategy to be applied (eg, RandomSearch())

• resampling=Holdout(): resampling strategy (eg, Holdout(), CV()), StratifiedCV()) to be applied in performance evaluations

• measure: measure or measures to be applied in performance evaluations; only the first used in optimization (unless the strategy is multi-objective) but all reported to the history

• weights: sample weights to be passed the measure(s) in performance evaluations, if supported (see important note above for behaviour in unspecified case)

• repeats=1: for generating train/test sets multiple times in resampling; see evaluate! for details

• operation=predict: operation to be applied to each fitted model; usually predict but predict_mean, predict_median or predict_mode can be used for Probabilistic models, if the specified measures are Deterministic

• range: range object; tuning strategy documentation describes supported types

• n: number of iterations (ie, models to be evaluated); set by tuning strategy if left unspecified

• train_best=true: whether to train the optimal model

• acceleration=default_resource(): mode of parallelization for tuning strategies that support this

• acceleration_resampling=CPU1(): mode of parallelization for resampling

• check_measure: whether to check measure is compatible with the specified model and operation)

Grid(goal=nothing, resolution=10, rng=Random.GLOBAL_RNG, shuffle=true)

Instantiate a Cartesian grid-based hyperparameter tuning strategy with a specified number of grid points as goal, or using a specified default resolution in each numeric dimension.

Supported ranges:

A single one-dimensional range or vector of one-dimensioinal ranges can be specified. Specifically, in Grid search, the range field of a TunedModel instance can be:

• A single one-dimensional range - ie, ParamRange object - r, or pair of the form (r, res) where res specifies a resolution to override the default resolution.

• Any vector of objects of the above form

Two elements of a range vector may share the same field attribute, with the effect that their grids are combined, as in Example 3 below.

ParamRange objects are constructed using the range method.

Example 1:

range(model, :hyper1, lower=1, origin=2, unit=1)

Example 2:

[(range(model, :hyper1, lower=1, upper=10), 15),
  range(model, :hyper2, lower=2, upper=4),
  range(model, :hyper3, values=[:ball, :tree])]

Example 3:

# a range generating the grid `[1, 2, 10, 20, 30]` for `:hyper1`:
[range(model, :hyper1, values=[1, 2]),
 (range(model, :hyper1, lower= 10, upper=30), 3)]

Note: All the field values of the ParamRange objects (:hyper1, :hyper2, :hyper3 in the preceding example) must refer to field names a of single model (the model specified during TunedModel construction).

Algorithm

This is a standard grid search with the following specifics: In all cases all values of each specified NominalRange are exhausted. If goal is specified, then all resolutions are ignored, and a global resolution is applied to the NumericRange objects that maximizes the number of grid points, subject to the restriction that this not exceed goal. (This assumes no field appears twice in the range vector.) Otherwise the default resolution and any parameter-specific resolutions apply.

In all cases the models generated are shuffled using rng, unless shuffle=false.

See also TunedModel, range.

RandomSearch(bounded=Distributions.Uniform,
             positive_unbounded=Distributions.Gamma,
             other=Distributions.Normal,
             rng=Random.GLOBAL_RNG)

Instantiate a random search tuning strategy, for searching over Cartesian hyperparameter domains, with customizable priors in each dimension.

Supported ranges

A single one-dimensional range or vector of one-dimensioinal ranges can be specified. If not paired with a prior, then one is fitted, according to fallback distribution types specified by the tuning strategy hyperparameters. Specifically, in RandomSearch, the range field of a TunedModel instance can be:

• a single one-dimensional range (ParamRange object) r

• a pair of the form (r, d), with r as above and where d is:

  • a probability vector of the same length as r.values (r a NominalRange)

  • any Distributions.UnivariateDistribution instance (r a NumericRange)

  • one of the subtypes of Distributions.UnivariateDistribution listed in the table below, for automatic fitting using Distributions.fit(d, r), a distribution whose support always lies between r.lower and r.upper (r a NumericRange)

• any pair of the form (field, s), where field is the (possibly nested) name of a field of the model to be tuned, and s an arbitrary sampler object for that field. This means only that rand(rng, s) is defined and returns valid values for the field.

• any vector of objects of the above form

A range vector may contain multiple entries for the same model field, as in range = [(:lambda, s1), (:alpha, s), (:lambda, s2)]. In that case the entry used in each iteration is random.

ParamRange objects are constructed using the range method.

Examples

using Distributions

range1 = range(model, :hyper1, lower=0, upper=1)

range2 = [(range(model, :hyper1, lower=1, upper=10), Arcsine),
          range(model, :hyper2, lower=2, upper=Inf, unit=1, origin=3),
          (range(model, :hyper2, lower=2, upper=4), Normal(0, 3)),
          (range(model, :hyper3, values=[:ball, :tree]), [0.3, 0.7])]

# uniform sampling of :(atom.λ) from [0, 1] without defining a NumericRange:
struct MySampler end
Base.rand(rng::Random.AbstractRNG, ::MySampler) = rand(rng)
range3 = (:(atom.λ), MySampler())

Algorithm

In each iteration, a model is generated for evaluation by mutating the fields of a deep copy of model. The range vector is shuffled and the fields sampled according to the new order (repeated fields being mutated more than once). For a range entry of the form (field, s) the algorithm calls rand(rng, s) and mutates the field field of the model clone to have this value. For an entry of the form (r, d), s is substituted with sampler(r, d). If no d is specified, then sampling is uniform (with replacement) if r is a NominalRange, and is otherwise given by the defaults specified by the tuning strategy parameters bounded, positive_unbounded, and other, depending on the field values of the NumericRange object r.

See also TunedModel, range, sampler.
