Learning Networks

MLJ has a flexible interface for building networks from multiple machine learning elements, whose complexity extend beyond the "pipelines" of other machine learning toolboxes.

Overview

In the future the casual MLJ user will be able to build common pipeline architetures, such as linear compositites and stacks, with simple macro invocations. Handcrafting a learning network, as outlined below, is an advanced MLJ feature, assuming familiarity with the basics outlined in Getting Started. The syntax for building a learning network is essentially an extension of the basic syntax but with data objects replaced with nodes ("dynamic data").

In MLJ, a learning network is a graph whose nodes apply an operation, such as predict or transform, using a fixed machine (requiring training) - or which, alternatively, applies a regular (untrained) mathematical operation to its input(s). In practice, a learning network works with fixed sources for its training/evaluation data, but can be built and tested in stages. By contrast, an exported learning network is a learning network exported as a stand-alone, re-usable Model object, to which all the MLJ Model meta-algorthims can be applied (ensembling, systematic tuning, etc).

As we shall see, exporting a learning network as a reusable model, is quite simple. While one can entirely skip the build-and-train steps, experimenting with raw learning networks may be the best way to understand how the stand-alone models work.

In MLJ learning networks treat the flow of information during training and predicting separately. For this reason, simpler examples may appear more a little more complicated than in other approaches. However, in more sophisticated examples, such as stacking, this separation is essential.

Building a simple learning network

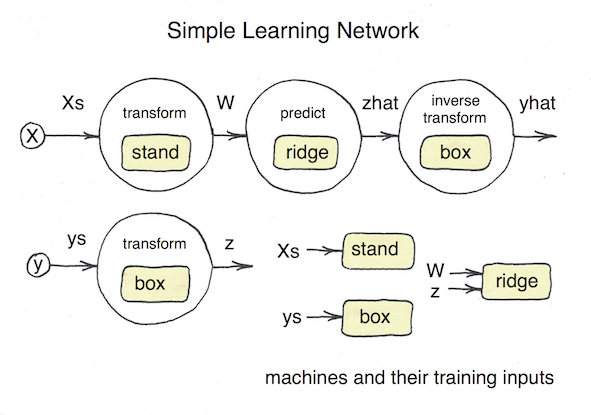

The diagram above depicts a learning network which standardises the input data X, learns an optimal Box-Cox transformation for the target y, predicts new target values using ridge regression, and then inverse-transforms those predictions, for later comparison with the original test data. The machines are labelled yellow.

To implement the network, we begin by loading data needed for training and evaluation into source nodes. For testing purposes, let's use synthetic data:

x1 = rand(300)
x2 = rand(300)
x3 = rand(300)
y = exp.(x1 - x2 -2x3 + 0.1*rand(300))
X = DataFrame(x1=x1, x2=x2, x3=x3) # a column table
ys = source(y)
Xs = source(X)

Source @ 1…95

We label nodes we will construct according to their outputs in the diagram. Notice that the nodes z and yhat use the same machine, namely box, for different operations.

To construct the W node we first need to define the machine stand that it will use to transform inputs.

stand_model = Standardizer()
stand = machine(stand_model, Xs)

NodalMachine @ 1…38 = machine(Standardizer @ 4…35, 1…95)

Because Xs is a node, instead of concrete data, we can call transform on the machine without first training it, and the result is the new node W, instead of concrete transformed data:

W = transform(stand, Xs)

Node @ 9…71 = transform(1…38, 1…95)

To get actual transformed data we call the node appropriately, which will require we first train the node. Training a node, rather than a machine, triggers training of all necessary machines in the network.

test, train = partition(eachindex(y), 0.8)
fit!(W, rows=train)
W()           # transform all data
W(rows=test ) # transform only test data
W(X[3:4,:])   # transform any data, new or old

2 rows × 3 columns

If you like, you can think of W (and the other nodes we will define) as "dynamic data": W is data, in the sense that it an be called ("indexed") on rows, but dynamic, in the sense the result depends on the outcome of training events.

The other nodes of our network are defined similarly:

box_model = UnivariateBoxCoxTransformer()  # for making data look normally-distributed
box = machine(box_model, ys)
z = transform(box, ys)

ridge_model = RidgeRegressor(lambda=0.1)
ridge =machine(ridge_model, W, z)
zhat = predict(ridge, W)

yhat = inverse_transform(box, zhat)

Node @ 1…01 = inverse_transform(4…82, predict(2…05, transform(1…38, 1…95)))

We are ready to train and evaluate the completed network. Notice that the standardizer, stand, is not retrained, as MLJ remembers that it was trained earlier:

fit!(yhat, rows=train)
rms(y[test], yhat(rows=test)) # evaluate

0.019875975913224958

We can change a hyperparameters and retrain:

ridge_model.lambda = 0.01
fit!(yhat, rows=train)
rms(y[test], yhat(rows=test))

0.019594865498019

Notable feature. The machine, ridge::NodalMachine{RidgeRegressor}, is retrained, because its underlying model has been mutated. However, since the outcome of this training has no effect on the training inputs of the machines stand and box, these transformers are left untouched. (During construction, each node and machine in a learning network determines and records all machines on which it depends.) This behaviour, which extends to exported learning networks, means we can tune our wrapped regressor without re-computing transformations each time the hyperparameter is changed.

Exporting a learning network as a stand-alone model

To export a learning network:

• Define a new mutable struct model type.
• Wrap the learning network code in a model fit method.

All learning networks that make determinisic (or, probabilistic) predictions export as models of subtype Deterministic{Node} (respectively, Probabilistic{Node}):

mutable struct WrappedRidge <: Deterministic{Node}
    ridge_model
end

WrappedRidge(; ridge_model=RidgeRegressor) = WrappedRidge(ridge_model); # keyword constructor

Main.ex-1.WrappedRidge

Now satisfied that our wrapped Ridge Regression learning network works, we simply cut and paste its defining code into a fit method:

function MLJ.fit(model::WrappedRidge, X, y)
    Xs = source(X)
    ys = source(y)

    stand_model = Standardizer()
    stand = machine(stand_model, Xs)
    W = transform(stand, Xs)

    box_model = UnivariateBoxCoxTransformer()  # for making data look normally-distributed
    box = machine(box_model, ys)
    z = transform(box, ys)

    ridge_model = model.ridge_model ###
    ridge =machine(ridge_model, W, z)
    zhat = predict(ridge, W)

    yhat = inverse_transform(box, zhat)
    fit!(yhat, verbosity=0)

    return yhat
end

The line marked ###, where the new exported model's hyperparameter ridge_model is spliced into the network, is the only modification.

What's going on here? MLJ's machine interface is built atop a more primitive model interface, implemented for each algorithm. Each supervised model type (eg, RidgeRegressor) requires model fit and predict methods, which are called by the corresponding machine fit! and predict methods. We don't need to define a model predict method here because MLJ provides a fallback which simply calls the node returned by fit on the data supplied: MLJ.predict(model::Supervised{Node}, Xnew) = yhat(Xnew).

The export process is complete and we can wrap our exported model around any data or task we like, and evaluate like any other model:

task = load_boston()
wrapped_model = WrappedRidge(ridge_model=ridge_model)
mach = machine(wrapped_model, task)
evaluate!(mach, resampling=CV(), measure=rms, verbosity=0)

6-element Array{Float64,1}:
 3.0225867093289347
 4.755707358891049
 5.011312664189936
 4.226827668908119
 8.933859687381847
 3.4788524973220545

Another example of an exported learning network is given in the next subsection.

Static operations on nodes

Continuing to view nodes as "dynamic data", we can, in addition to applying "dynamic" operations like predict and transform to nodes, overload ordinary "static" operations as well. Common operations, like addition, scalar multiplication, exp and log work out-of-the box. To demonstrate this, consider the code below defining a composite model that:

(1) one-hot encodes the input table X (2) log transforms the continuous target y (3) fits specified K-nearest neighbour and ridge regressor models to the data (4) computes a weighted average of individual model predictions (5) inverse transforms (exponentiates) the blended predictions

Note, in particular, the lines defining zhat and yhat, which combine several static node operations.

mutable struct KNNRidgeBlend <:Deterministic{Node}

    knn_model
    ridge_model
    weights::Tuple{Float64, Float64}

end

function MLJ.fit(model::KNNRidgeBlend, X, y)

    Xs = source(X)
    ys = source(y)

    hot = machine(OneHotEncoder(), Xs)

    # W, z, zhat and yhat are nodes in the network:

    W = transform(hot, Xs) # one-hot encode the input
    z = log(ys) # transform the target

    ridge_model = model.ridge_model
    knn_model = model.knn_model

    ridge = machine(ridge_model, W, z)
    knn = machine(knn_model, W, z)

    # average the predictions of the KNN and ridge models
    zhat = model.weights[1]*predict(ridge, W) + weights[2]*predict(knn, W)

    # inverse the target transformation
    yhat = exp(zhat)

    fit!(yhat, verbosity=0)

    return yhat
end

task = load_boston()
knn_model = KNNRegressor(K=2)
ridge_model = RidgeRegressor(lambda=0.1)
weights = (0.9, 0.1)
blended_model = KNNRidgeBlend(knn_model, ridge_model, weights)
mach = machine(blended_model, task)
evaluate!(mach, resampling=Holdout(fraction_train=0.7), measure=rmsl)

0.5277143032101871

To overerload a function for application to nodes, we the node method. Here are some examples taken from MLJ source (at work in the example above):

Base.log(v::Vector{<:Number}) = log.(v)
Base.log(X::AbstractNode) = node(log, X)

import Base.+
+(y1::AbstractNode, y2::AbstractNode) = node(+, y1, y2)
+(y1, y2::AbstractNode) = node(+, y1, y2)
+(y1::AbstractNode, y2) = node(+, y1, y2)

Here AbstractNode is the common supertype of Node and Source.

As a final example, here's how to extend row shuffling to nodes:

using Random
Random.shuffle(X::AbstractNode) = node(Y -> MLJ.selectrows(Y, Random.shuffle(1:nrows(Y))), X)

using Random # hide
X = (x1 = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
     x2 = [:one, :two, :three, :four, :five, :six, :seven, :eight, :nine, :ten])
Xs = source(X)
W = shuffle(Xs)

Node @ 1…65 = #2(7…78)

W()

(x1 = [8, 3, 7, 4, 6, 5, 9, 1, 10, 2],
 x2 = Symbol[:eight, :three, :seven, :four, :six, :five, :nine, :one, :ten, :two],)

The learning network API

Three types are part of learning networks: Source, Node and NodalMachine. A NodalMachine is returned by the machine constructor when given nodal arguments instead of concrete data.

The definitions of Node and NodalMachine are coupled because every NodalMachine has Node objects in its args field (the training arguments specified in the constructor) and every Node must specify a NodalMachine, unless it is static (see below).

Source nodes

Only source nodes reference concrete data. A Source object has a single field, data.

Xs = source(X)

Xs() = X
Xs(rows=r) = selectrows(X, r)  # eg, X[r,:] for a DataFrame
Xs(Xnew) = Xnew

sources(N)

Nodal machines

The key components of a NodalMachine object are:

• A model, specifying a learning algorithm and hyperparameters.

• Training arguments, which specify the nodes acting as proxies for training data on calls to fit!.

• A fit-result, for storing the outcomes of calls to fit!.

• A dependency tape (a vector or DAG) containing elements of type NodalMachine, obtained by merging the tapes of all training arguments.

A nodal machine is trained in the same way as a regular machine with one difference: Instead of training the model on the wrapped data indexed on rows, it is trained on the wrapped nodes called on rows, with calling being a recursive operation on nodes within a learning network (see below).

Nodes

The key components of a Node are:

• An operation, which will either be static (a fixed function) or dynamic (such as predict or transform, dispatched on a nodal machine NodalMachine).

• A nodal machine on which to dispatch the operation (void if the operation is static).

• Upstream connections to other nodes (including source nodes) specified by arguments (one for each argument of the operation).

• A dependency tape, obtained by merging the the tapes of all arguments (nodal machines) and adding the present node's nodal machine.

N = node(f::Function, args...)

N() = f(args[1](), args[2](), ..., args[n]())
N(rows=r) = f(args[1](rows=r), args[2](rows=r), ..., args[n](rows=r))
N(X) = f(args[1](X), args[2](X), ..., args[n](X))

J = node(f, mach::NodalMachine, args...)

J() = f(mach, args[1](), args[2](), ..., args[n]())
J(rows=r) = f(mach, args[1](rows=r), args[2](rows=r), ..., args[n](rows=r))
J(X) = f(mach, args[1](X), args[2](X), ..., args[n](X))

fit!(N::Node; rows=nothing, verbosity=1, force=false)
