From RandomOversampling to ROSE
import Pkg;
Pkg.add(["Random", "CSV", "DataFrames", "MLJ", "Imbalance",
"ScientificTypes", "Plots", "Measures", "HTTP"])
using Random
using CSV
using DataFrames
using MLJ
using ScientificTypes
using Imbalance
using Plots, Measures
using HTTP: downloadLoading Data
Let's load the Iris dataset, the objective of this dataset is to predict the type of flower as one of "virginica", "versicolor" and "setosa" using its sepal and petal length and width.
We don't need to so from a CSV file this time because MLJ has a macro for loading it already! The only difference is that we will need to explictly convert it to a dataframe as MLJ loads it as a named tuple of vectors.
X, y = @load_iris
X = DataFrame(X)
first(X, 5) |> pretty┌──────────────┬─────────────┬──────────────┬─────────────┐
│ sepal_length │ sepal_width │ petal_length │ petal_width │
│ Float64 │ Float64 │ Float64 │ Float64 │
│ Continuous │ Continuous │ Continuous │ Continuous │
├──────────────┼─────────────┼──────────────┼─────────────┤
│ 5.1 │ 3.5 │ 1.4 │ 0.2 │
│ 4.9 │ 3.0 │ 1.4 │ 0.2 │
│ 4.7 │ 3.2 │ 1.3 │ 0.2 │
│ 4.6 │ 3.1 │ 1.5 │ 0.2 │
│ 5.0 │ 3.6 │ 1.4 │ 0.2 │
└──────────────┴─────────────┴──────────────┴─────────────┘Our purpose for this tutorial is primarily visuallization. Thus, let's select two of the continuous features only to work with. It's known that the sepal length and width play a much bigger role in classifying the type of flower so let's keep those only.
X = select(X, :petal_width, :petal_length)
first(X, 5) |> pretty┌─────────────┬──────────────┐
│ petal_width │ petal_length │
│ Float64 │ Float64 │
│ Continuous │ Continuous │
├─────────────┼──────────────┤
│ 0.2 │ 1.4 │
│ 0.2 │ 1.4 │
│ 0.2 │ 1.3 │
│ 0.2 │ 1.5 │
│ 0.2 │ 1.4 │
└─────────────┴──────────────┘Coercing Data
ScientificTypes.schema(X)┌──────────────┬────────────┬─────────┐
│ names │ scitypes │ types │
├──────────────┼────────────┼─────────┤
│ petal_width │ Continuous │ Float64 │
│ petal_length │ Continuous │ Float64 │
└──────────────┴────────────┴─────────┘Things look good, no coercion is needed.
Oversampling
Iris, by default has no imbalance problem
checkbalance(y)virginica: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 50 (100.0%)
setosa: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 50 (100.0%)
versicolor: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 50 (100.0%)To simulate that there is a balance problem, we will consider a random sample of 100 observations. A random sample does not guarantee perserving the proportion of classes; in this, we actually set the seed to get a very unlikely random sample that suffers from strong imbalance.
Random.seed!(803429)
subset_indices = rand(1:size(X, 1), 100)
X, y = X[subset_indices, :], y[subset_indices]
checkbalance(y) # comes from Imbalanceversicolor: ▇▇▇▇▇▇▇▇▇▇▇ 12 (22.6%)
setosa: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 35 (66.0%)
virginica: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 53 (100.0%)We will treat this as our training set going forward so we don't need to partition. Now let's oversample it with ROSE.
Xover, yover = rose(X, y; s=0.3, ratios=Dict("versicolor" => 1.0, "setosa"=>1.0))
checkbalance(yover)Progress: 67%|███████████████████████████▍ | ETA: 0:00:00[K
[A
virginica: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 53 (100.0%)
setosa: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 53 (100.0%)
versicolor: ▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇▇ 53 (100.0%)Training the Model
models(matching(Xover, yover))53-element Vector{NamedTuple{(:name, :package_name, :is_supervised, :abstract_type, :deep_properties, :docstring, :fit_data_scitype, :human_name, :hyperparameter_ranges, :hyperparameter_types, :hyperparameters, :implemented_methods, :inverse_transform_scitype, :is_pure_julia, :is_wrapper, :iteration_parameter, :load_path, :package_license, :package_url, :package_uuid, :predict_scitype, :prediction_type, :reporting_operations, :reports_feature_importances, :supports_class_weights, :supports_online, :supports_training_losses, :supports_weights, :transform_scitype, :input_scitype, :target_scitype, :output_scitype)}}:
(name = AdaBoostClassifier, package_name = MLJScikitLearnInterface, ... )
(name = AdaBoostStumpClassifier, package_name = DecisionTree, ... )
(name = BaggingClassifier, package_name = MLJScikitLearnInterface, ... )
(name = BayesianLDA, package_name = MLJScikitLearnInterface, ... )
(name = BayesianLDA, package_name = MultivariateStats, ... )
(name = BayesianQDA, package_name = MLJScikitLearnInterface, ... )
(name = BayesianSubspaceLDA, package_name = MultivariateStats, ... )
(name = CatBoostClassifier, package_name = CatBoost, ... )
(name = ConstantClassifier, package_name = MLJModels, ... )
(name = DecisionTreeClassifier, package_name = BetaML, ... )
⋮
(name = SGDClassifier, package_name = MLJScikitLearnInterface, ... )
(name = SVC, package_name = LIBSVM, ... )
(name = SVMClassifier, package_name = MLJScikitLearnInterface, ... )
(name = SVMLinearClassifier, package_name = MLJScikitLearnInterface, ... )
(name = SVMNuClassifier, package_name = MLJScikitLearnInterface, ... )
(name = StableForestClassifier, package_name = SIRUS, ... )
(name = StableRulesClassifier, package_name = SIRUS, ... )
(name = SubspaceLDA, package_name = MultivariateStats, ... )
(name = XGBoostClassifier, package_name = XGBoost, ... )Let's go for a BayesianLDA.
import Pkg; Pkg.add("MultivariateStats")Before Oversampling
# 1. Load the model
BayesianLDA = @load BayesianLDA pkg=MultivariateStats
# 2. Instantiate it
model = BayesianLDA()
# 3. Wrap it with the data in a machine
mach = machine(model, X, y)
# 4. fit the machine learning model
fit!(mach, verbosity=0)After Oversampling
# 3. Wrap it with the data in a machine
mach_over = machine(model, Xover, yover)
# 4. fit the machine learning model
fit!(mach_over, verbosity=0)Plot Decision Boundaries
Construct ranges for each feature and consecutively a grid
petal_width_range =
range(minimum(X.petal_width) - 1, maximum(X.petal_width) + 1, length = 200)
petal_length_range =
range(minimum(X.petal_length) - 1, maximum(X.petal_length) + 1, length = 200)
grid_points = [(pw, pl) for pw in petal_width_range, pl in petal_length_range]
200×200 Matrix{Tuple{Float64, Float64}}:
(-0.9, 0.2) (-0.9, 0.238693) … (-0.9, 7.9)
(-0.878894, 0.2) (-0.878894, 0.238693) (-0.878894, 7.9)
(-0.857789, 0.2) (-0.857789, 0.238693) (-0.857789, 7.9)
(-0.836683, 0.2) (-0.836683, 0.238693) (-0.836683, 7.9)
(-0.815578, 0.2) (-0.815578, 0.238693) (-0.815578, 7.9)
(-0.794472, 0.2) (-0.794472, 0.238693) … (-0.794472, 7.9)
(-0.773367, 0.2) (-0.773367, 0.238693) (-0.773367, 7.9)
(-0.752261, 0.2) (-0.752261, 0.238693) (-0.752261, 7.9)
(-0.731156, 0.2) (-0.731156, 0.238693) (-0.731156, 7.9)
(-0.71005, 0.2) (-0.71005, 0.238693) (-0.71005, 7.9)
⋮ ⋱
(3.13116, 0.2) (3.13116, 0.238693) (3.13116, 7.9)
(3.15226, 0.2) (3.15226, 0.238693) (3.15226, 7.9)
(3.17337, 0.2) (3.17337, 0.238693) (3.17337, 7.9)
(3.19447, 0.2) (3.19447, 0.238693) (3.19447, 7.9)
(3.21558, 0.2) (3.21558, 0.238693) … (3.21558, 7.9)
(3.23668, 0.2) (3.23668, 0.238693) (3.23668, 7.9)
(3.25779, 0.2) (3.25779, 0.238693) (3.25779, 7.9)
(3.27889, 0.2) (3.27889, 0.238693) (3.27889, 7.9)
(3.3, 0.2) (3.3, 0.238693) (3.3, 7.9)Evaluate the grid with the machine before and after oversampling
grid_predictions = [
predict_mode(mach, Tables.table(reshape(collect(point), 1, 2)))[1] for
point in grid_points
]
grid_predictions_over = [
predict_mode(mach_over, Tables.table(reshape(collect(point), 1, 2)))[1] for
point in grid_points
]200×200 CategoricalArrays.CategoricalArray{String,2,UInt32}:
"setosa" "setosa" "setosa" … "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" … "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
"setosa" "setosa" "setosa" "versicolor" "versicolor"
⋮ ⋱
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" … "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"
"virginica" "virginica" "virginica" "virginica" "virginica"Make two contour plots using the grid predictions before and after oversampling
p = contourf(petal_length_range, petal_width_range, grid_predictions,
levels = 3, color = :Set3_3, colorbar = false)
p_over = contourf(petal_length_range, petal_width_range, grid_predictions_over,
levels = 3, color = :Set3_3, colorbar = false)
println()Scatter plot the data before and after oversampling
old_count = size(X, 1)
labels = unique(y)
colors = Dict("setosa" => "green", "versicolor" => "yellow",
"virginica" => "purple")
for label in labels
scatter!(p, X.petal_length[y.==label], X.petal_width[y.==label],
color = colors[label], label = label,
title = "Before Oversampling")
scatter!(p_over, X.petal_length[y.==label], X.petal_width[y.==label],
color = colors[label], label = label,
title = "After Oversampling")
# find new points only and plot with different shape
scatter!(p_over, Xover.petal_length[old_count+1:end][yover[old_count+1:end].==label],
Xover.petal_width[old_count+1:end][yover[old_count+1:end].==label],
color = colors[label], label = label*"-over", markershape = :diamond,
title = "After Oversampling")
end
plot_res = plot(
p,
p_over,
layout = (1, 2),
xlabel = "petal length",
ylabel = "petal width",
size = (900, 300),
margin = 5mm, dpi = 200
)

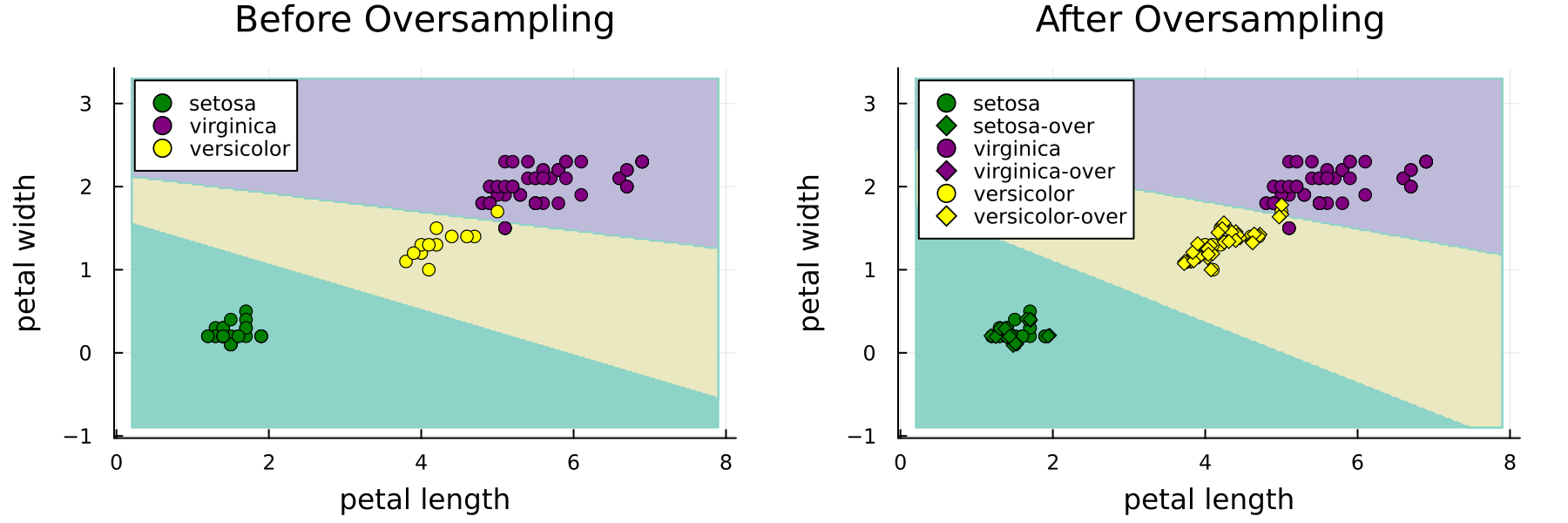

savefig(plot_res, "./assets/ROSE-before-after.png")
Effect of Increasing s
anim = @animate for s ∈ 0:0.03:6.0
# oversample
Xover, yover =
rose(X, y; s = s, ratios = Dict("setosa" => 1.0, "versicolor" => 1.0), rng = 42)
model = BayesianLDA()
mach_over = machine(model, Xover, yover)
fit!(mach_over, verbosity = 0)
# grid predictions
grid_predictions_over = [
predict_mode(mach_over, Tables.table(reshape(collect(point), 1, 2)))[1] for
point in grid_points
]
p_over = contourf(petal_length_range, petal_width_range, grid_predictions_over,
levels = 3, color = :Set3_3, colorbar = false)
old_count = size(X, 1)
for label in labels
scatter!(p_over, X.petal_length[y.==label], X.petal_width[y.==label],
color = colors[label], label = label,
title = "Oversampling with s=$s")
# find new points only and plot with different shape
scatter!(p_over,
Xover.petal_length[old_count+1:end][yover[old_count+1:end].==label],
Xover.petal_width[old_count+1:end][yover[old_count+1:end].==label],
color = colors[label], label = label * "-over", markershape = :diamond,
title = "Oversampling with s=$s")
end
plot!(dpi = 150)
end

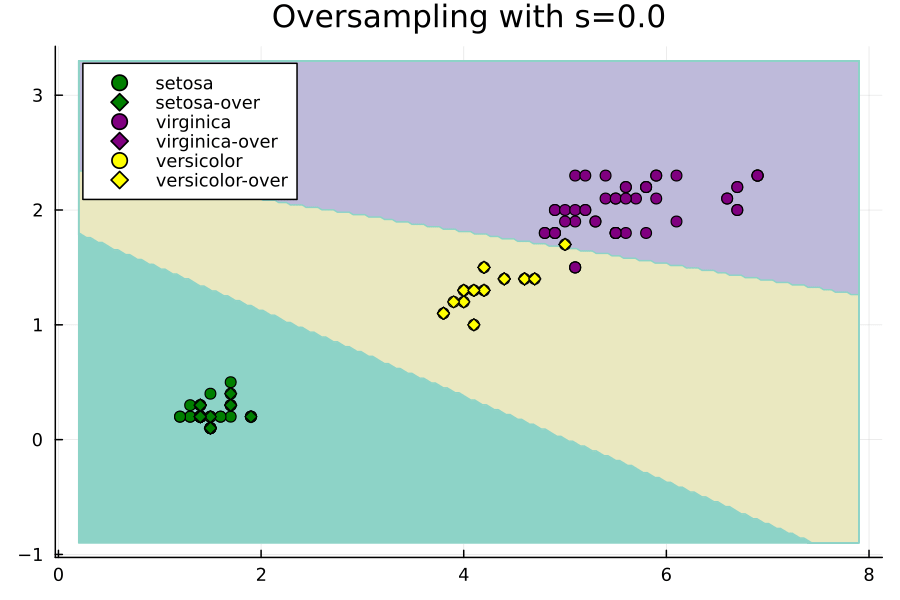

gif(anim, "./assets/rose-animation.gif", fps=6)
println()
As we can see, the larger s is the more spread out are the oversampled points. This is expected because what ROSE does is oversample by sampling from the distribution that corresponds to placing Gaussians on the existing points and s is a hyperparameter proportional to the bandwidth of the Gaussians. When s=0 the only points that can be generated lie on top of others; i.e., ROSE becomes equivalent to random oversampling
The decision boundary is mainly unstable because we used a small number of epochs with the perceptron to generate this animation. It still took plenty of time.
